With flat side guides - Helios

In the case of cassette blinds with flat side guides, the fabric is rolled up inside a cassette and held by flat side guides.
When well-fitted to the window, they will allow you to blackout the room and provide comfortable conditions to rest.
The installation method is up to you! You can either screw them to the window or choose a tool-free method and simply use some glue.
Thanks to a wide range of fabric colours and types, your place will definitely look really attractive.
This type of blinds fantastically protects your privacy!
Read more
from 6202 pln

Product configurator

By entering and selecting individual configurator fields below, you will create a product according to your own parameters and needs.

A list of your choice will appear in the "cheat sheet of your choice"
and after completing the necessary fields the price of "your" product will appear.

With flat side guides
width x height: (cm, cm) x cm
price for 1 item in PLN: ?

Your selection

name
Helios
type
With flat side guides
1. width x height
(cm, cm) x cm
2. cassette fitting method
-not selected-
3. colour of the cassette and side guides
-not selected-
4. Do you have curved glazing beads?
-not selected-
5. fabric
-not selected-
6. number of items
0
Mechanism positioning
-not selected-
price for 1 item in PLN
?
price for 1 item in EUR
?
Rebate degree
10%
8%
4%
3%
2%
price
?
completion time
3 dni
delivery cost
UE
14990 (PLN)
1

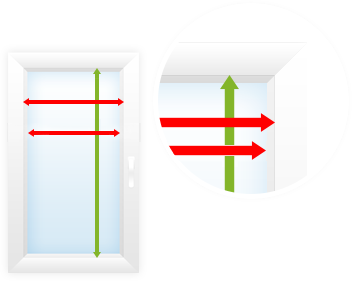

Enter a value according to the measurement instructions

Help
cm
cm
cm
2

select the cassette fitting method

3

select the colour of the cassette and side guides

Help
White
Brown
Walnut
Golden oak
Cherry
Dark oak
Light oak
Anthracite
Anoda
Mahogany
4

Do you have curved glazing beads?

Help
5

Select the blind fabric

Fabric colours shown may differ from the actual fabric colours due to individual monitor settings.

Rolety jednobarwne
I price group
A 125
A 110
A 191
A 171
A 188
A 120
A 168 grszek
A 169
Show all from this group
II price group
M 744
M 743
M 739
M 737
M 738
Show all from this group
III price group
A 601
A 602
A 603
A 604
A 605
A 606
A 607
A 608
A 614
A 616
A 617
A 618
A 620
A 622
A 626
A 627
A 629
A 631
A 632
A 633
A 634
Len 85
A 625
A 641
A 692
A 645
A 635
A 615
A 639
A 638
A 613
A 646
A 647
Show all from this group
Rolety wzorzyste
III price group
Kala 01
B 428
B 866
Show all from this group
IV price group
B 406
B 407
E 313
Tra 5110
Show all from this group
V price group
B 903
B 909
Show all from this group
Rolety zaciemniające
III price group
MB 5
MB 8
MB 11
SOF 064
Show all from this group
IV price group
SXL 061
SXL 053
SXL 058
SXL 051
SXL 052
SXL 054
SXL 069
Show all from this group
V price group
Milena 04
Milena 06
Milena 07
Milena 09
Milena 10
Milena 03
Milena 23
Milena 12
Milena 16
Milena 19
Milena 15
Milena 25
Milena 26
Show all from this group
6

How many identical tilt devices do you need - on the left or on the right

Help
szt.
szt.
The lead time for this product is: 3 dni

Items added to the basket are not automatically purchased.

You can edit or cancel your order at any time.

Information about the product

Quick order completion
24-month warranty
Thousands of satisfied customers
Years of experience
Description

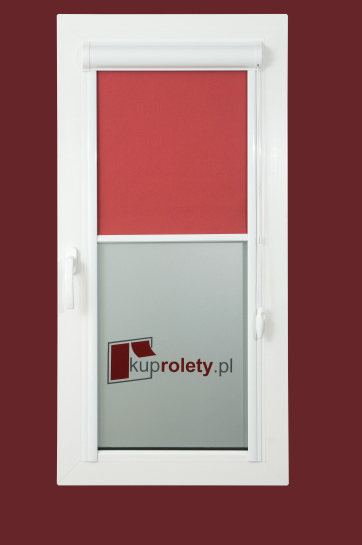

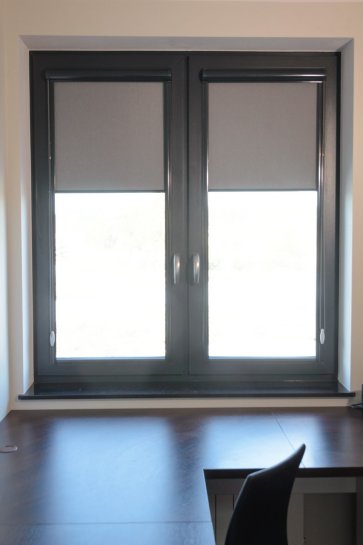

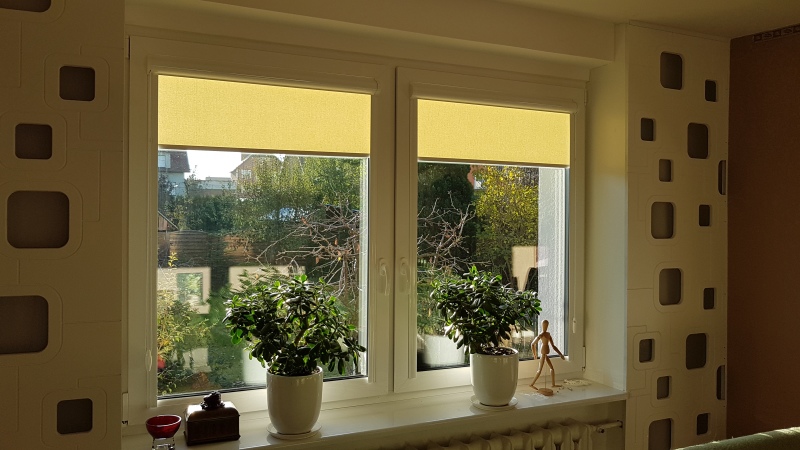

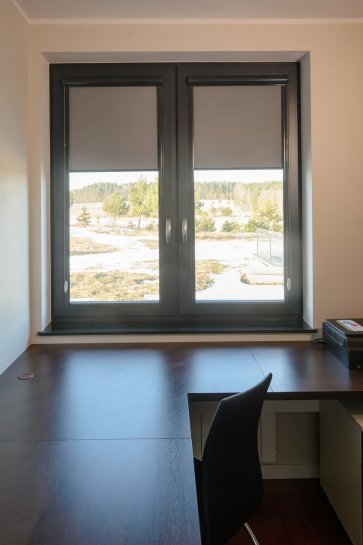

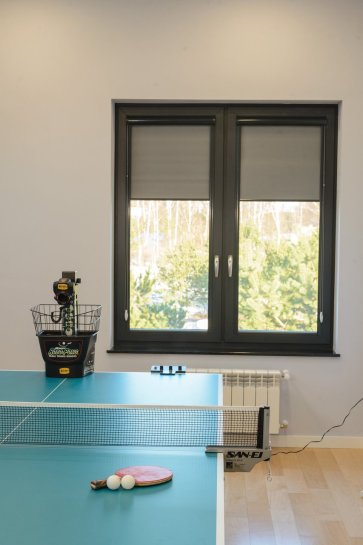

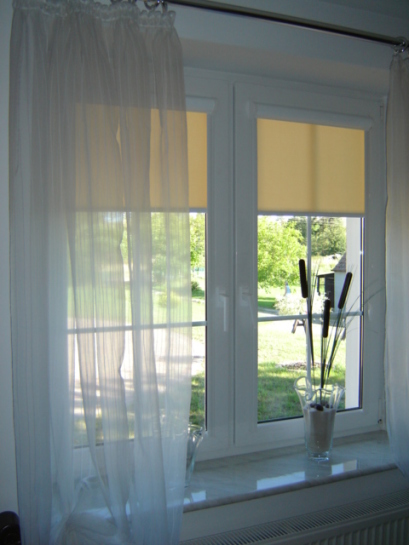

Cassette blinds with flat side guides are nothing else but a roll of fabric wrapped around a roller, protected by a cassette at the top and flat guides on the sides.

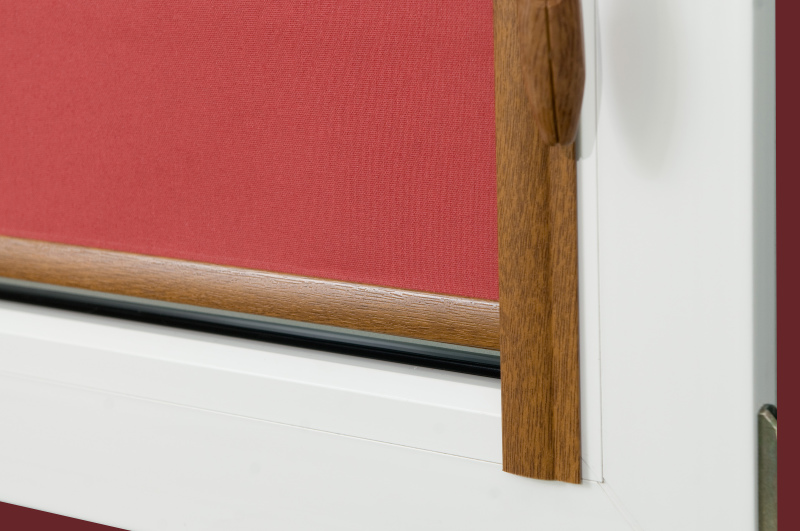

Both the cassette and guides are attached to the glazing beads. The fabric slides along the window pane between the glazing beads.
Thanks to the cassette and side guides, Helios blinds become an integral part of the window, holding the fabric even when the window is slightly open.

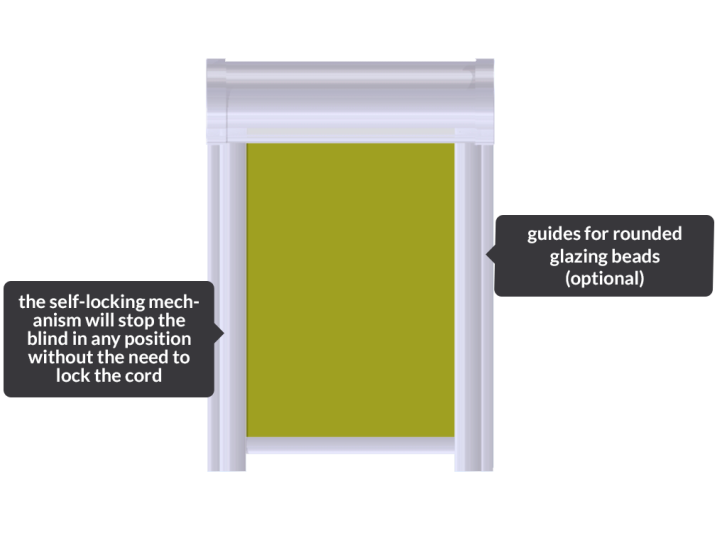

The aesthetic self-locking mechanism with a chain will allow you to stop the fabric at any height.

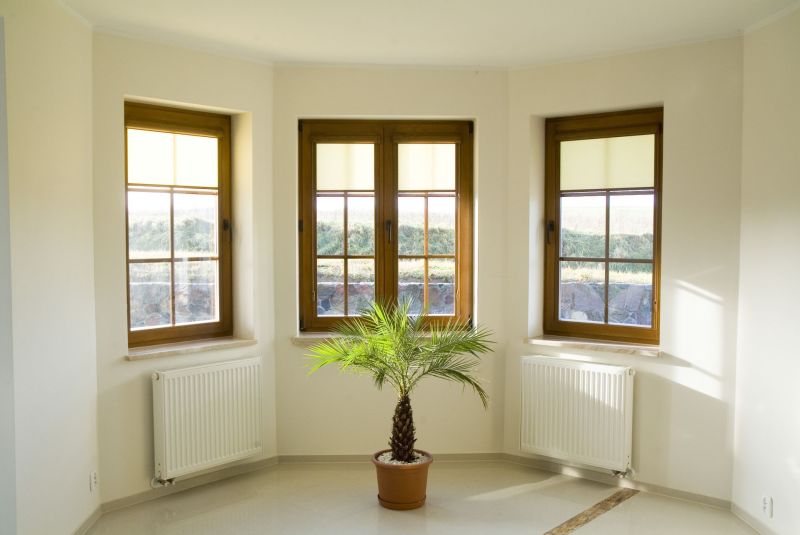

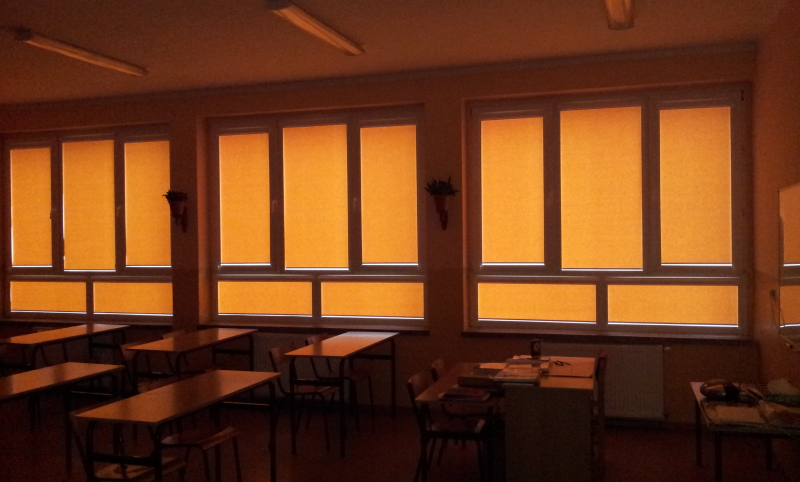

This type of blinds is installed on each window pane, which means that every lite requires a separate set of blinds.

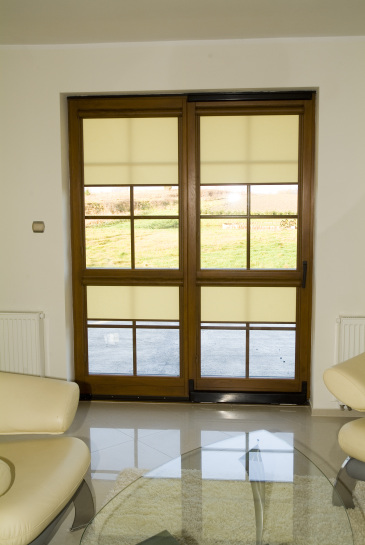

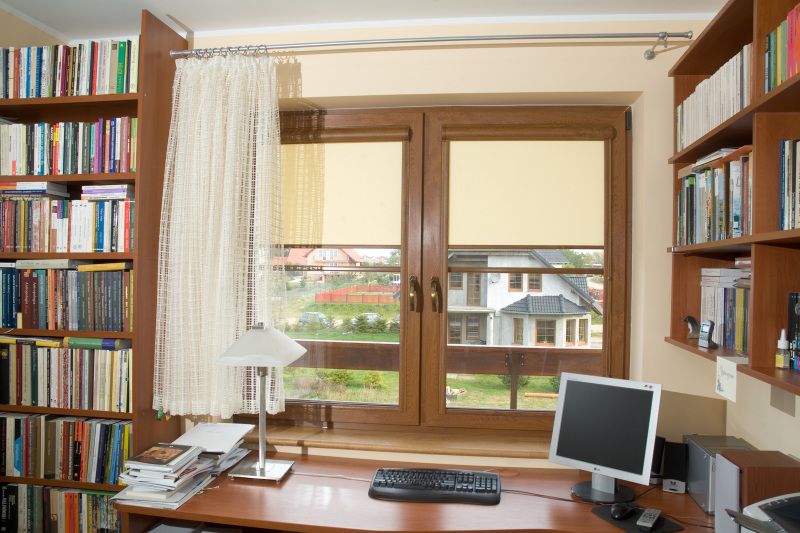

For example, a balcony door with a mullion (mid-rail) requires two separate sets of blinds for its upper and lower section.
If you are looking for balcony door blinds that will cover the entire door and do not need two separate sets of blinds for the upper and lower pane, you should pick cassette blinds with U-shaped side guides.
Installation method

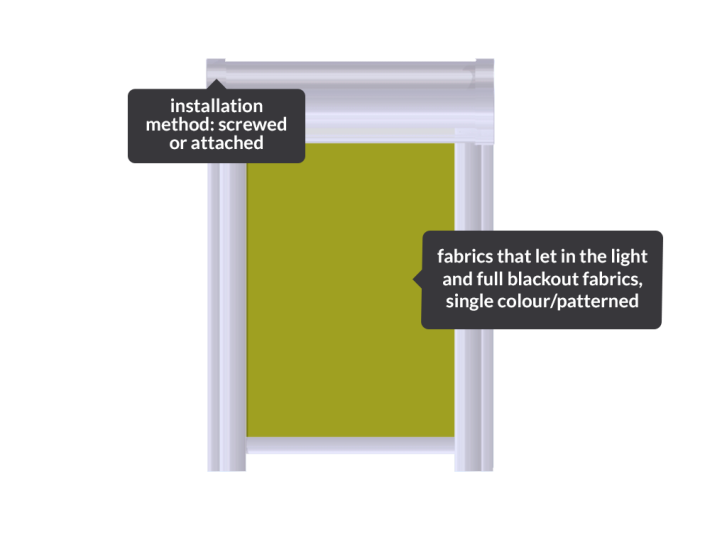

The cassette can be screwed or glued to the glazing bead.
The side guides are always attached with Lohmann foam tape (we have been using this tape for years; even detaching the blinds from the window is very hard). It is essential to degrease the surface to which the blinds will be attached.
This type of blinds is always attached to the glazing beads. Even if you decide to use screws, they are put into the replaceable glazing beads rather than the window profile, which does not void the warranty of most window manufacturers.

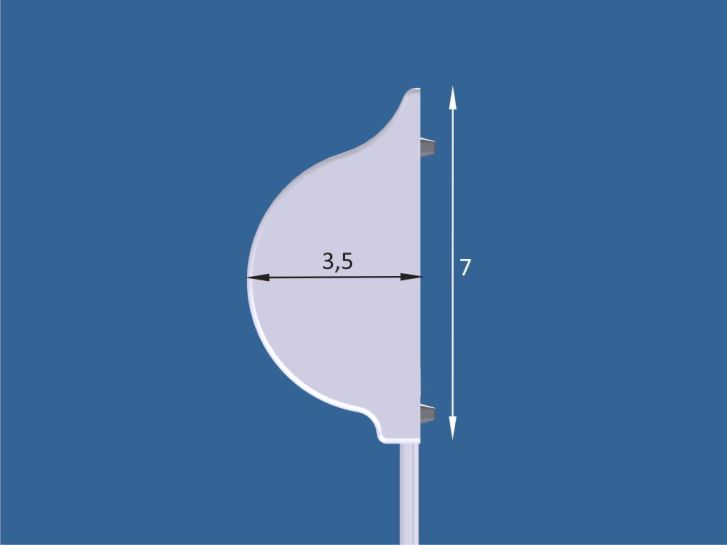

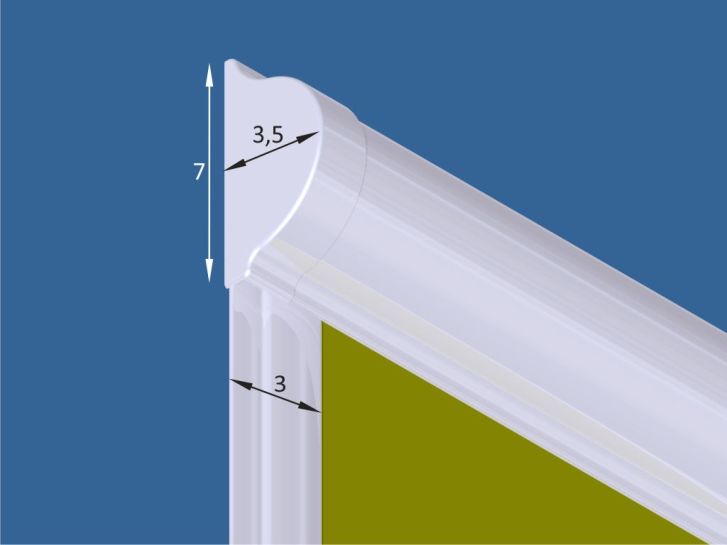

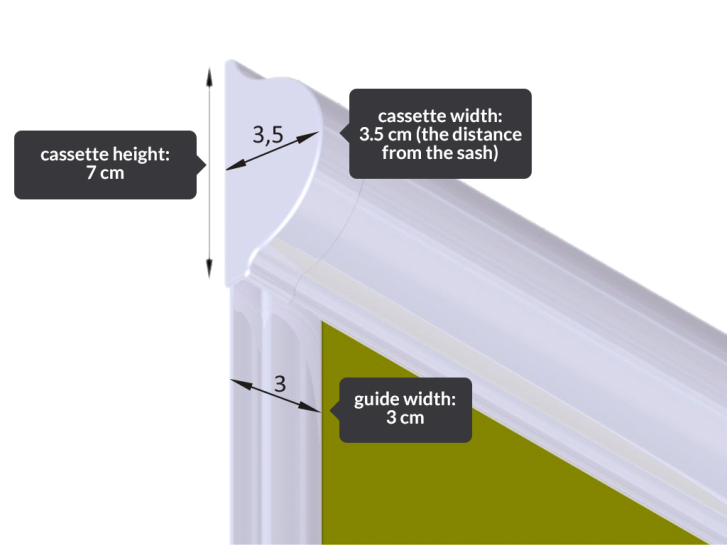

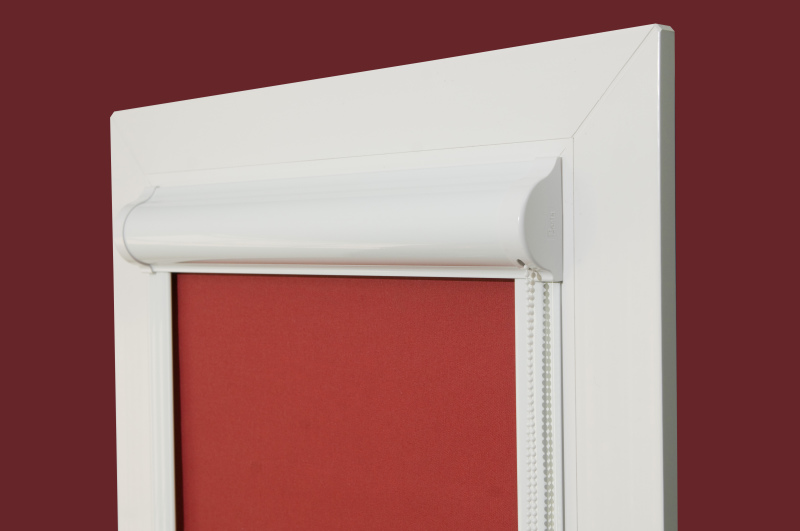

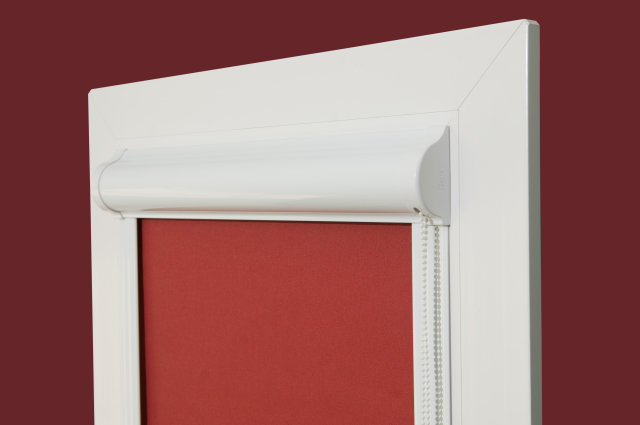

The cassette, thanks to its small height (3.5 cm), does not restrict the window sash opening angle much.
Installation time and tools
Depending on your manual skills, it should take you about 5–10 minutes to install one set of these blinds.
You will need a screwdriver or a screw gun, a small ladder or a platform, a cloth and a degreaser (e.g. benzine) and a place to attach the guides and the cassette (optionally).

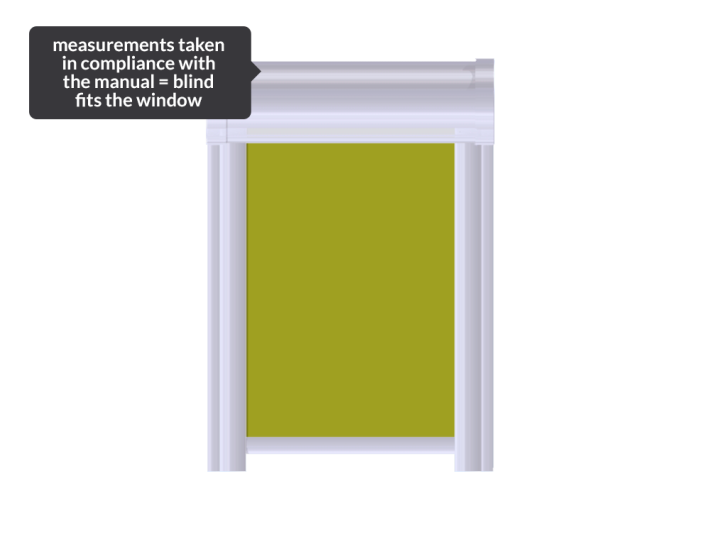

Remember that each product requires a different measuring method. If you take measurements in compliance with the instruction guide, the installation will be fast and easy, and the blinds will work without any problems! See the instruction guide how to measure blinds with flat guides.
Colour of the cassette and guides
Cassettes and side guides are made of PVC and aluminium. PVC cassettes and side guides come only in white.
Those made of aluminium can be powder coated in white, brown or anthracite. There is also an anodized version (silver colour).

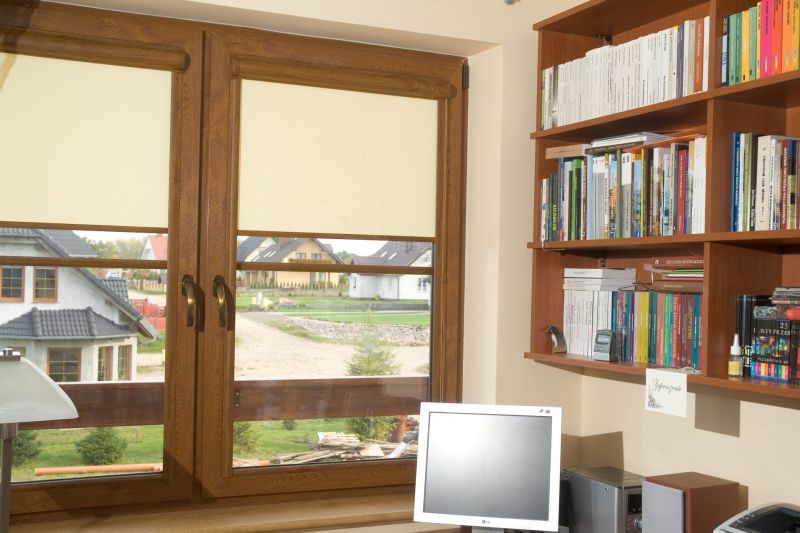

Aluminium cassettes and guides are veneered in the same colours as window frames, i.e. golden oak, walnut, light oak, swamp oak, cherry mahogany. The veneer is the same as in the case of window production.
Choosing the side of the mechanism
The side of the mechanism basically determines the side of the cassette on which the blind bead chain will be located. Usually, the bead chain is located on the opposite side of the handle, but that is not always the case. Sometimes, an exception must be made because of the location and accessibility of the blinds.
Maximum size limits
Width
1.5 m
Height
2.4 m
